TRACTOR ELECTRIC MOTOR DRIVE & BRAKING SYSTEM

-------- Built For Fun EV's -------

Heel operated brake pedal
Needle roller mounted drive shaft with roller chain sprockets
Bike disc brakes and callipers

2 off 36V 1000W DC PM Motors running at 24V to deliver 660W each.

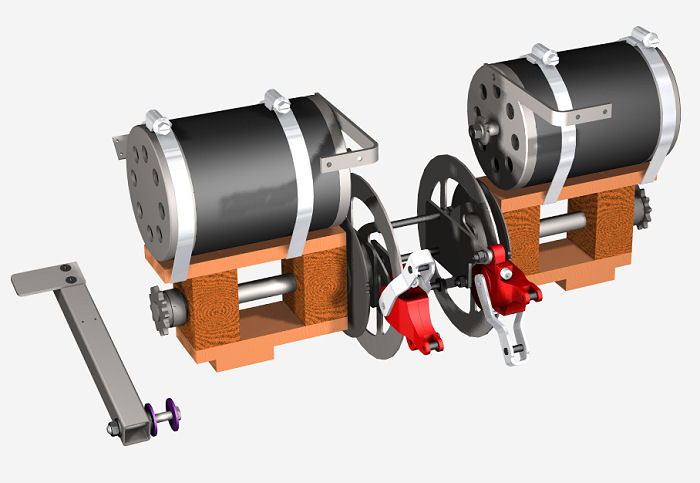

tractor electric motor drive

Note: The complete drawing set for the Yard Tractor is available from our Plans Order page here.



Each rear wheel of the tractor has its own electric motor drive. On each a 24V 660W DC Permanent Magnet electric motor drives through a 2 stage roller chain reduction to the rear axle. A disc brake is incorporated into each drive to provide mechanical braking independent of the electrical system. The intermediate drive shafts are mounted on needle roller bearings supported in hardwood housings.

The brake callipers are operated by a heel pedal.
