TRACTOR FRONT BEAM AXLE & WHEELS

-------- Built For Fun EV's -------

Ackerman geometry steering brackets.
Pivoted timber beam axle
Tilted king-pin wheel support brackets with needle roller mounted wheel axles.

16x650x8 Turf Tyre/Wheel Units.

Note: The complete drawing set for the Yard Tractor is available from our Plans Order page here.



tractor front beam axle

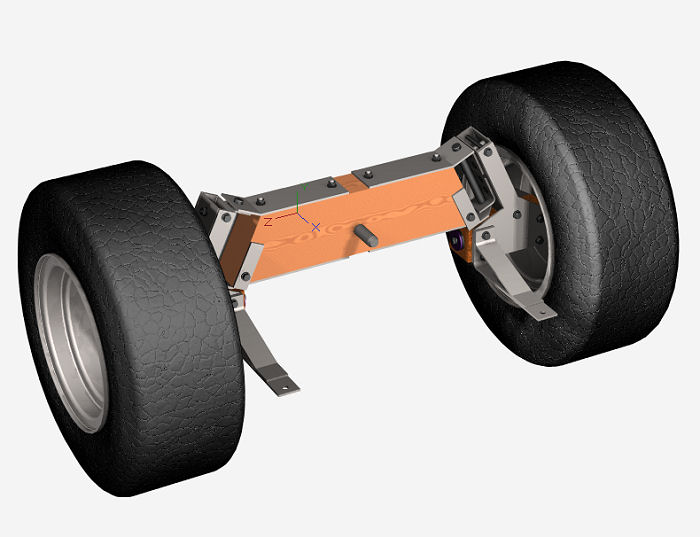

A pivoted timber front beam axle is built-in which ensures all-wheel contact on uneven driving surfaces. The front wheel axle supports are carried on tilted king pins to lessen steering loads and reduce back loading into the steering column in addition to providing a degree of self-straightening behaviour. The attached steering brackets form part of the Ackerman steering geometry of the tractor. The wheel axles are supported on needle roller bearings supported in hardwood housings. The front wheels are conventional 16x650x8 turf tyre/wheel units.
