TRACTOR REAR DRIVE AXLE & WHEELS

-------- Built For Fun EV's -------

25mm Rear Axles running on needle roller bearings and fitted with ball thrust bearings.
18x850x8 Turf Tyre Assemblies mounted on weld-less chain sprocket drive hubs.

Note: The complete drawing set for the Yard Tractor is available from our Plans Order page here.

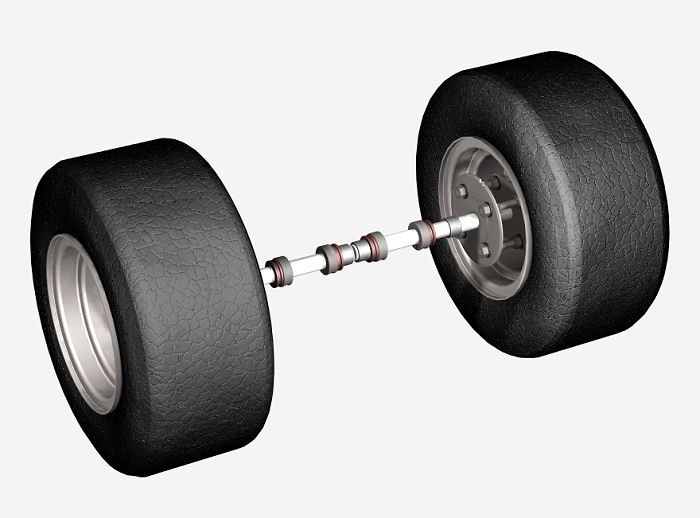

tractor rear axle



The rear wheels are conventional 18x850x8 turf tyre/wheel units. They are mounted on a weld-less drive hub assembly which incorporates a 3/8" pitch (#35) roller chain drive sprocket. The rear axle is 25 mm diameter un-stepped steel shafting and runs on inexpensive needle roller bearings mounted in the hardwood bearing blocks in the chassis. The axle is also fitted with ball thrust bearings to carry axle thrust loads that arise during tractor cornering.
