TRACTOR TIMBER CHASSIS

-------- Built For Fun EV's -------

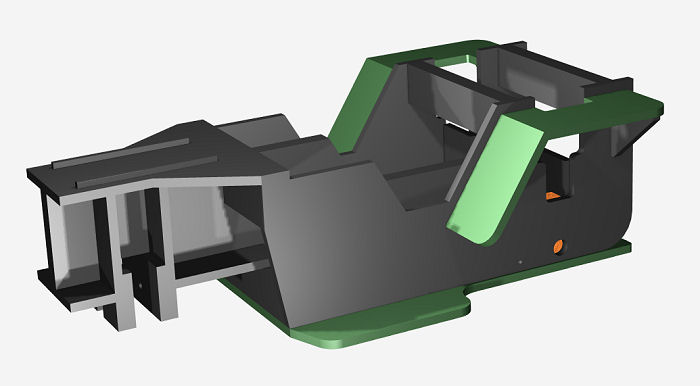

Hardwood rear axle bearing housings.

Internal space for rechargeable lead acid battery pack.

Reinforced front substructure to carry pivoted front beam axle.

Side foot ledges.

Note: The complete drawing set for the Yard Tractor is available from our Plans Order page here.

Plywood and planed timber glued and screwed tractor chassis

Note: The complete drawing set for the Yard Tractor is available from our Plans Order page here.

tractor timber chassis



The tractor body is made up from glued and screwed wooden parts. Plywood for the structural longerons and side panels, floor and other panels with planed timber cross bracing. The resulting chassis is strong and stiff and forms a sound structural basis for the tractor. Rear axle bearings are mounted in hardwood housings bonded into the structure. The structure can be finished in the colour of your choice.
