KART BRAKE AND ACCELERATOR PEDALS

Foot rests secured to main chassis longerons

Brake pedal to operate the cable actuated rear band brakes.
Foot accelerator pedal - operates the spring return speed control potentiometer.

NOTE that the accelerator mechanism can be substituted for alternative designs to suit the actual motor controller used.

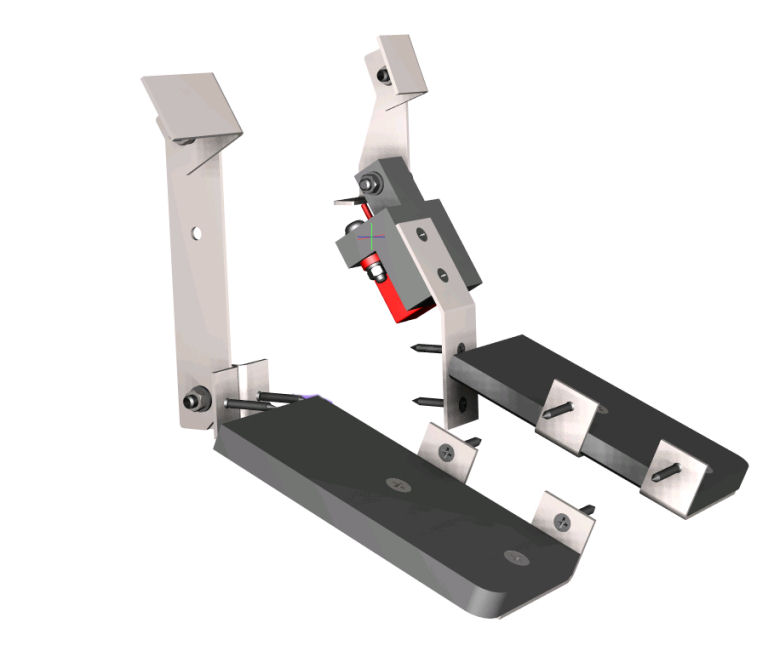

brake and accelerator pedals & foot rests

Foot operated speed control and brakes are included in the design. The foot accelerator operates a spring return potentiometer matched to the input requirements of the motor controller and which signals desired speed to the controller. This may be substituted for other foot accelerator mechanisms to suit the controller used.

The brake pedal operates by cable the two rear axle band brakes which are situated in the rear drive box.



Follow the links for printable pdf sheets showing the overview with list of parts and all the part shapes and sizes.
