500W Electric Kart - Plan Details
ELECTRICAL DRIVE
COMPONENTS
The electrical and

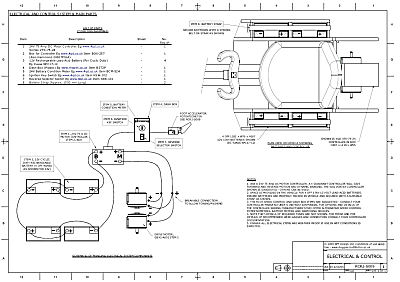

control drawing outlines the main electrical drive
components and their wiring. In addition placement of
batteries and controller in the structure is
described.
You could substitute
several of the key components, eg motor controller,
speed control potentiometer, battery condition indicator, on-off
switch etc. Reference should always be made to your
chosen motor controller manufacturer's documentation to
establish detailed wiring requirements and details of
required fuses, wire gauges etc as these will vary
according to the controller chosen.
Rechargeable battery
sizes are given.
|
