500W Electric Kart - Plan Details

KART FINAL ASSEMBLY

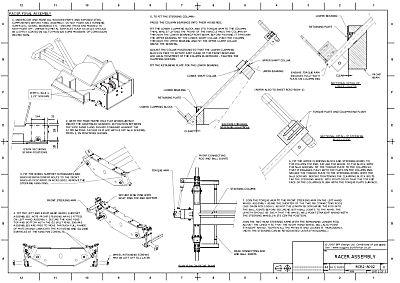

The final assembly of the kart is described over four drawing sheets. These give a step-by-step procedure for completing the kart build from its sub-assemblies.

Many builders will find that after making all the parts they are familiar enough with the construction to understand the final build without too much reference to the sheets. However they also contain important inspection and maintenance information and safety related guidance on sensible kart use.

A combination of isometric, orthogonal external and sectional views are used to describe the build sequence. A small parts list of additional parts required for the assembly (mainly fasteners, washers etc) is included.
