Tilting Scooter - Free Plan Details

SCOOTER FINAL ASSEMBLY

Click on Drawing Images - Password is: scooter

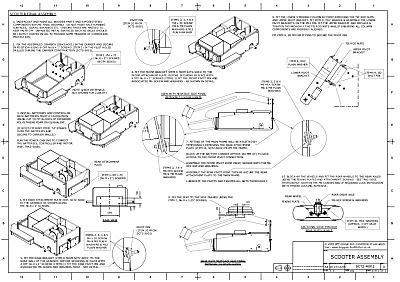

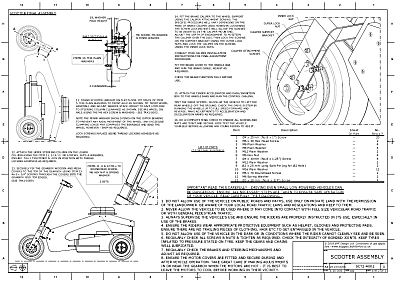

The final assembly of the scooter is described on two drawing sheets. These give a step-by-step procedure for completing the scooter build from its sub-assemblies.

Many builders will find that after making all the parts they are familiar enough with the construction to understand the final build without too much reference to the sheets. They also contain important inspection and maintenance information and safety related guidance on sensible scooter use.

A combination of isometric, orthogonal external and sectional views are used to describe the build sequence. A small parts list of additional parts required for the assembly (mainly fasteners) is included.
